Deep UV LED SMD

275nm and 310nm DUV LED are avaialble.
275nm can be sterilized directly. 310nm is the optimum wavelength for medical applications.

Please click here if you request for quotation.


NS275L-3DFG

CATALOG(PDF/239KB)


NSxxxL-3DFG This products comply with RoHS.

This product is under development.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS275L-3DFG
3.5 x 3.5 x 1.22702806.0-11.5150125
Size

NS275L-6DMG

CATALOG(PDF/258KB)


NSxxxL-6DMG This products comply with RoHS.

This product is under development.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS275L-6DMG
6.3 x 6.3 x 1.82702806.5-50.0600118
Size

NS275L-6DFG

CATALOG(PDF/256KB)


NSxxxL-6DFG This products comply with RoHS.

This product is under development.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS275L-6DFG
6.3 x 6.3 x 1.82702806.0-19.0200120
Size

NS275L-6D4G

CATALOG(PDF/260KB)

NS310L-6D4G

CATALOG(PDF/260KB)


NSxxxL-6S4G This products comply with RoHS.

This product is under development.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS275L-6D4G
6.3 x 6.3 x 1.82702806.5-13.0120116
NS310L-6D4G
6.3 x 6.3 x 1.83053155.5-6.8120

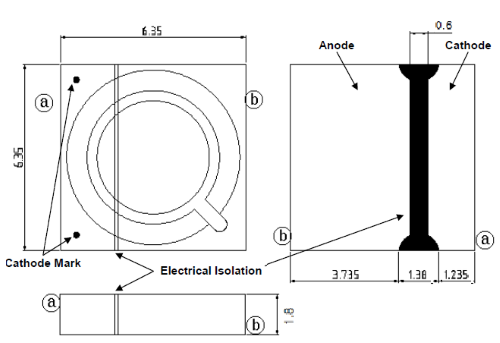

Size

NS275L-6DIG

CATALOG(PDF/259KB)

NS310L-6DIG

CATALOG(PDF/259KB)


NSxxxL-6DIG This products comply with RoHS.

This product is under development.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS275L-6DIG
6.3 x 6.3 x 1.82702806.5-3.130115
NS310L-6DIG
6.3 x 6.3 x 1.83053155.5-1.830
Size
