UV LED Lamp

We provide high-quality UV LED Lamps which wavelength are 355nm, 360nm, 365nm, 370nm and 375nm. UV LED Lamps are available in two lines, very reliable CAN package (5CLA/5CFA) and high power resin mold package.
In resin mold packaged LED, there are the world highest powered LED ; ERLM
series and other high power LED (5RLO, 5RLM, 5RFS).
In addition, the smaller LED lamp with 3φ size is also available. Our resin mold packaged LED is very reliable because of using the special resin which is resistant to UV ray.
Please check a catalog and select better one for your application.

Please click here if you request for quotation.

Type Model No. Direction Characteristics
(degree)
Size
(mm)
Wavelength Note
Resin mold NSxxxL-ERLM 40 365nm, 370nm, 375nm, 400nm High power
NSxxxL-5RLO 15 355nm, 360nm, 365nm, 370nm, 375nm High power
Three kinds of direction characteristics and two kinds of size are available.
NSxxxL-5RLM 30 365nm, 375nm
NSxxxL-5RFS 100 365nm, 370nm, 375nm
NSxxxL-3RLQ 30 355nm, 360nm, 365nm,370nm, 375nm

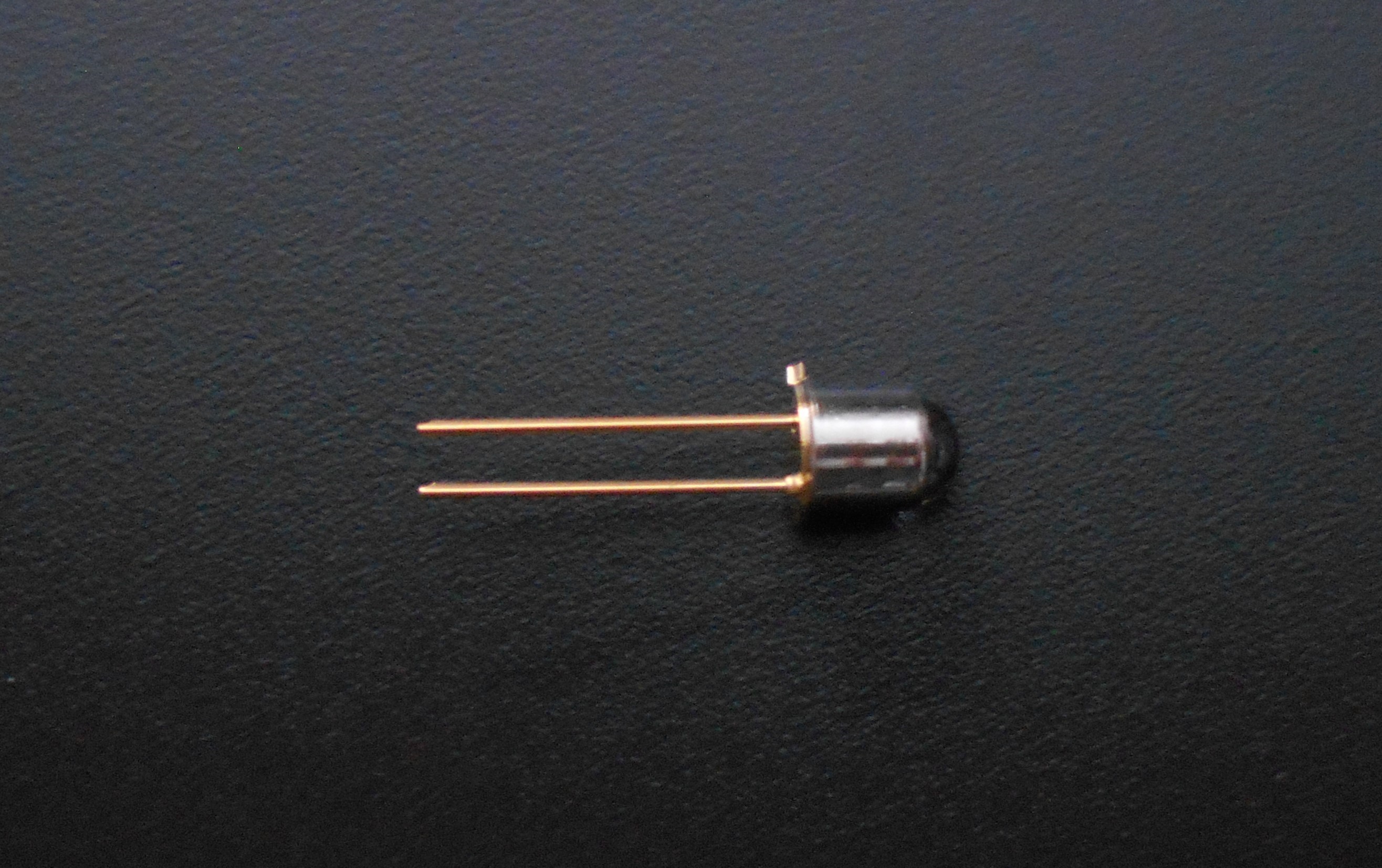

CAN NSxxxL-5CLA 10 365nm, 370nm, 375nm High reliability
NSxxxL-5CFA 100

Please refer to FAQ for future information of resin mold type.


NS365L-ERLM

CATALOG(PDF/129KB)

NS370L-ERLM

CATALOG(PDF/129KB)

NS375L-ERLM

CATALOG(PDF/128KB)

NS400L-ERLM

CATALOG(PDF/148KB)

NS375L-ERLM This products comply with RoHS.

(Ta=25°C IF=20mA)


Model No. Size
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Typ. Max. Typ. Max. Typ. Max.
NS365L-ERLM
SPECIFICATION
(PDF/352KB)
365 - 370 3.6 4.2 17.4 40
NS370L-ERLM
SPECIFICATION
(PDF/351KB)
370 - 375 3.6 4.2 21.0 40
NS375L-ERLM
SPECIFICATION
(PDF/332KB)
375 - 380 3.6 4.2 25.0 40
NS400L-ERLM
SPECIFICATION
(PDF/329KB)
400 - 405 3.2 4.0 29.4 40

↑ TOP


NS355/360L-5RLO

CATALOG(PDF/150KB)

NS365/370/375L-5RLO

CATALOG(PDF/125KB)

NS365/370/375L-5RLO This products comply with RoHS.

(Ta=25°C IF=20mA)


Model No. Size
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Typ. Max. Typ. Max. Typ. Max.
NS355L-5RLO
SPECIFICATION
(PDF/332KB)
353 - 360 3.6 4.2 2.4 15
NS360L-5RLO
SPECIFICATION
(PDF/332KB)
360 - 363 3.6 4.2 2.4 15
NS365L-5RLO
SPECIFICATION
(PDF/330KB)
363 - 370 3.6 4.2 6.0 15
NS370L-5RLO
SPECIFICATION
(PDF/330KB)
370 - 375 3.6 4.2 6.0 15
NS375L-5RLO
SPECIFICATION
(PDF/331KB)
375 - 380 3.6 4.2 14.0 15

The products which directivity characteristics are 30 degree and 45 degree are available.Please contact us.

↑ TOP


NS365/375L-5RLM

CATALOG(PDF/120KB)

NS365/375L-5RLM This products comply with RoHS.

(Ta=25°C IF=20mA)


Model No. Size
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Typ. Max. Typ. Max. Typ. Max.
NS365L-5RLM
SPECIFICATION
(PDF/342KB)
363 - 370 3.6 4.2 6.0 30
NS375L-5RLM
SPECIFICATION
(PDF/342KB)
375 - 380 3.6 4.2 17.4 30
Size(mm) Direction Characteristics

↑ TOP


NS365/370/375L-5RFS

CATALOG(PDF/125KB)

NS365/370/375L-5RFS This products comply with RoHS.

(Ta=25°C IF=20mA)


Model No. Size
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Typ. Max. Typ. Max. Typ. Max.
NS365L-5RFS
SPECIFICATION
(PDF/343KB)
363 - 370 3.6 4.2 6.0 100
NS370L-5RFS
SPECIFICATION
(PDF/343KB)
370 - 375 3.6 4.2 6.0 100
NS375L-5RFS
SPECIFICATION
(PDF/332KB)
375 - 380 3.6 4.2 14.0 100

↑ TOP


NS355/360-3RLQ

CATALOG(PDF/156KB)

NS365/370/375L-3RLQ

CATALOG(PDF/121KB)

NS365/370/375L-3RLQ This products comply with RoHS.

(Ta=25°C IF=20mA)


Model No. Size
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Typ. Max. Typ. Max. Typ. Max.
NS355L-3RLQ
SPECIFICATION
(PDF/335KB)
353 - 360 3.6 4.2 2.4 30
NS360L-3RLQ
SPECIFICATION
(PDF/335KB)
360 - 363 3.6 4.2 4.0 30
NS365L-3RLQ
SPECIFICATION
(PDF/333KB)
363 - 370 3.6 4.2 6.0 30
NS370L-3RLQ
SPECIFICATION
(PDF/345KB)
370 - 375 3.6 4.2 6.0 30
NS375L-3RLQ
SPECIFICATION
(PDF/333KB)
375 - 380 3.6 4.2 17.4 30

↑ TOP


NS365/370/375L-5CLA

CATALOG(PDF/159KB)

NS365/370/375L-5CLA This products comply with RoHS.

(Ta=25°C IF=20mA)


Model No. Size
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Typ. Max. Typ. Max. Max. Typ.
NS365L-5CLA
SPECIFICATION
(PDF/336KB)
363 - 370 3.6 4.2 1.2 10
NS370L-5CLA
SPECIFICATION
(PDF/150KB)
370 - 375 3.6 4.2 1.8 10
NS375L-5CLA
SPECIFICATION
(PDF/149KB)
375 - 380 3.6 4.2 2.4 10

↑ TOP


NS365/370/375L-5CFA

CATALOG(PDF/159KB)

NS365/370/375L-5CFA This products comply with RoHS.

(Ta=25°C IF=20mA)


Model No. Size
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Typ. Max. Typ. Max. Max. Typ.
NS365L-5CFA
SPECIFICATION
(PDF/150KB)
363 - 370 3.6 4.2 1.8 100
NS370L-5CFA
SPECIFICATION
(PDF/150KB)
370 - 375 3.6 4.2 2.4 100
NS375L-5CFA
SPECIFICATION
(PDF/336KB)
375 - 380 3.6 4.2 6.0 100

↑ TOP


Spectrum

Spectrum
