Power SMD

User can select the best one with suitable size, wavelength and optical output power depending on the application.
Please click here if you request for quotation.

P/N Size
(mm)
Direction
Characteristics
2θ 1/2 (degree)
Peak Wavelength Note
NSxxxL-7SMG 6.8 x 6.8 x 1.0 115 365nm, 385nm 4pcs of 1.4mm chip in one PKG
NSxxxL-3SLG 3.5 x 3.5 x 1.1 115 365nm, 385nm, 395nm, 405nm 1pcs of 1.4mm chip in one PKG
NSxxxL-3SLR 3.5 x 3.5 x 2.5 62 365nm, 385nm, 395nm, 405nm 1pcs of 1.4mm chip in one PKG
with hard glass lens
NSxxxL-2SVR 2.7 x 2.7 x 2.0 110 365, 385, 405nm 1pcs of 1.1mm chip in one PKG
NSxxxL-3SVR 3.5 x 3.5 x 2.0 120 385, 395, 405nm
NSxxxL-3SVT 3.5 x 3.5 x 2.8 45 385, 395, 405nm
NSxxxL-6SMG 6.3 x 6.3 x 1.4 116 365, 385, 395nm 1pcs of 1.4mm chip in one PKG
NSxxxL-6SVG 6.3 x 6.3 x 1.4 110 365, 375, 385, 395, 405nm 1pcs of 1.1mm chip in one PKG

NS365/385L-7SMG

CATALOG(PDF/199KB)


NSxxxL-7SMG This products comply with RoHS.

This product is under development.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS365L-7SMG
6.8 x 6.8 x 1.03603704.0-38003000115
NS385L-7SMG
6.8 x 6.8 x 1.03803903.5-53003000115

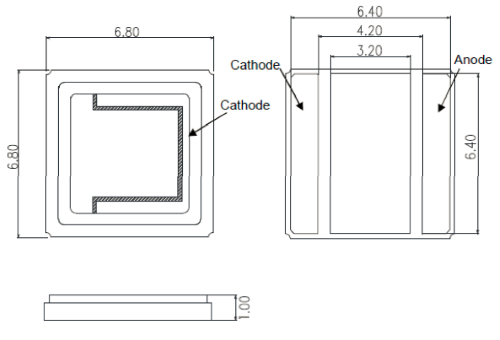

Size

NS365/385L-3SLG

CATALOG(PDF/240KB)

NS395/405L-3SLG

CATALOG(PDF/240KB)


NSxxxL-3SLG This products comply with RoHS.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS365L-3SLG
3.5 x 3.5 x 1.13603703.7-13001000115
NS385L-3SLG
3.5 x 3.5 x 1.13803903.6-17501000115
NS395L-3SLG
3.5 x 3.5 x 1.13904003.6-17501000115
NS405L-3SLG
3.5 x 3.5 x 1.14004103.4-16501000115
Size

NS365/385L-3SLR

CATALOG(PDF/257KB)

NS395/405L-3SLR

CATALOG(PDF/257KB)


NSxxxL-3SLR This products comply with RoHS.

This is the product with a hard glass lens on NSxxxL-3SLG.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS365L-3SLR
3.5 x 3.5 x 2.53603703.7-1350100062
NS385L-3SLR
3.5 x 3.5 x 2.53803903.6-1750100062
NS395L-3SLR
3.5 x 3.5 x 2.53904003.6-1750100062
NS405L-3SLR
3.5 x 3.5 x 2.54004103.4-1650100062
Size

NS365/385/405L-2SVR

CATALOG(PDF/124KB)

NSxxxL-2SVR This products comply with RoHS.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS365L-2SVR
SPECIFICATION
(PDF/481KB)
2.7 x 2.7 x 2.03603703.8-800500110
NS385L-2SVR
SPECIFICATION
(PDF/471KB)
2.7 x 2.7 x 2.03803903.6-1000500110
NS405L-2SVR
SPECIFICATION
(PDF/480KB)
2.7 x 2.7 x 2.04004103.5-930500110
Size

NS385/395/405L-3SVR

CATALOG(PDF/181KB)


NSxxxL-3SVR This products comply with RoHS.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS385L-3SVR
3.5 x 3.5 x 2.03803903.6-1100500120
NS395L-3SVR
3.5 x 3.5 x 2.03904003.5-1000500120
NS405L-3SVR
3.5 x 3.5 x 2.04004103.5-960500120
Size

NS385L-3SVT

CATALOG(PDF/269KB)

NS395/405L-3SVT

CATALOG(PDF/270KB)


NSxxxL-3SVT This products comply with RoHS.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS385L-3SVT
3.5 x 3.5 x 2.83803903.6-110050045
NS395L-3SVT
3.5 x 3.5 x 2.83904003.5-100050045
NS405L-3SVT
3.5 x 3.5 x 2.84004103.5-96050045
Size

NS365/385/395L-6SMG

CATALOG(PDF/248KB)


NSxxxL-6SMG This products comply with RoHS.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS365L-6SMG
6.3 x 6.3 x 1.43603707.8-27501000116
NS385L-6SMG
6.3 x 6.3 x 1.43803907.4-37501000116
NS395L-6SMG
6.3 x 6.3 x 1.43904007.2-37501000116

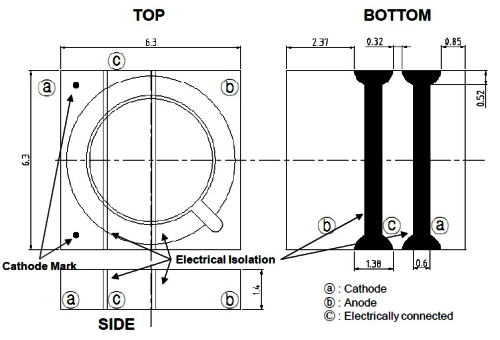

Size

NS365/375/385L-6SVG

CATALOG(PDF/285KB)

NS395/405L-6SVG

CATALOG(PDF/284KB)


NSxxxL-6SVG This products comply with RoHS.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Forward
Current
If (mA)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS365L-6SVG
6.3 x 6.3 x 1.43603703.8-690500110
NS375L-6SVG
6.3 x 6.3 x 1.43703803.8-710500110
NS385L-6SVG
6.3 x 6.3 x 1.43803903.8-950500110
NS395L-6SVG
6.3 x 6.3 x 1.43904003.6-900500110
NS405L-6SVG
6.3 x 6.3 x 1.44004103.6-900500110

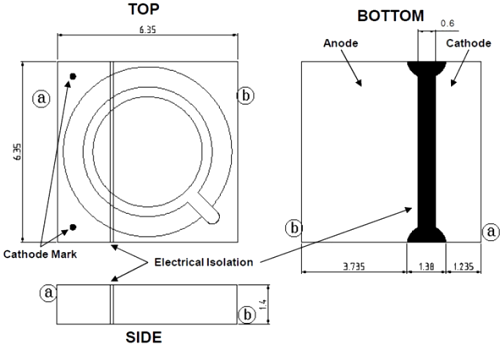

Size

NS400L-4SFH

CATALOG(PDF/132KB)

NS375L/NS400L-4SFH This products comply with RoHS.

This product is out of production. The stocks are only available.

(Ta=20°C IF=80mA)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS400L-4SFH
SPECIFICATION
(PDF/196KB)

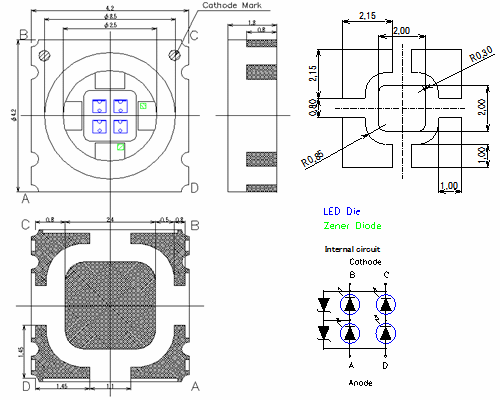

4.2 x 4.2 x 1.34004056.88.4150125

NS365M-CPLY

CATALOG(PDF/156KB)

NS385M-CPLY

CATALOG(PDF/157KB)

NS400M-CPLY

CATALOG(PDF/158KB)


NS375M-CPLY This products comply with RoHS.

This product is out of production. The stocks are only available.

(Ta=25°C)

Model No. Size
L x W x H
(mm)
Peak
Wavelength
λp (nm)
Forward
Voltage
Vf (V)
Optical
Output Power
Po (mW)
Direction
Characteristics
2θ 1/2 (degree)
Min. Max. Typ. Max. Typ. Typ.
NS365M-CPLY
SPECIFICATION
(PDF/300KB)
19.0 x 19.9 x 1.6 363 370 21.0 25.0 200 135
NS385M-CPLY
SPECIFICATION
(PDF/300KB)
19.0 x 19.9 x 1.6 380 390 21.0 25.0 1,000 140
NS400M-CPLY
SPECIFICATION
(PDF/302KB)
19.0 x 19.9 x 1.6 395 405 18.5 22.5 1,500 140

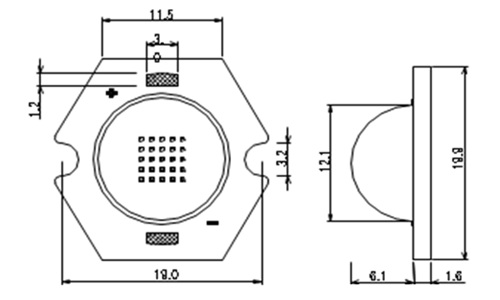

Size

Pre-soldering is on the electrode pads.
The dimension has a margin of error due to burr.
