Lineup

GaN wafer
Product Model No. Overview Thickness Carrier density
n-GaN n-type GaN Wafer 2µm - 6µm Adjustable
p-GaN p-type 0.2µm - 3µm Not adjustable
undope-GaN - 0.2µm - 2µm -
UV-LED
Sensor Light / Photo-catalyst / UV-Curring / Phosphor Excitation / Chemical Analysis Equipment / Medical apparatus / Amusement
Product Model No. Overview Wavelength Note
Wafer NSxxxW Wafer 355nm - 375nm Epi wafer of UV LED structure
Chip NSxxxC-3SAA NSxxxC-3SAA 365nm, 375nm Bare chip
600µm x 600µm
NSxxxC-2SAA NSxxxC-2SAA 355nm - 375nm Bare chip
280µm x 280µm

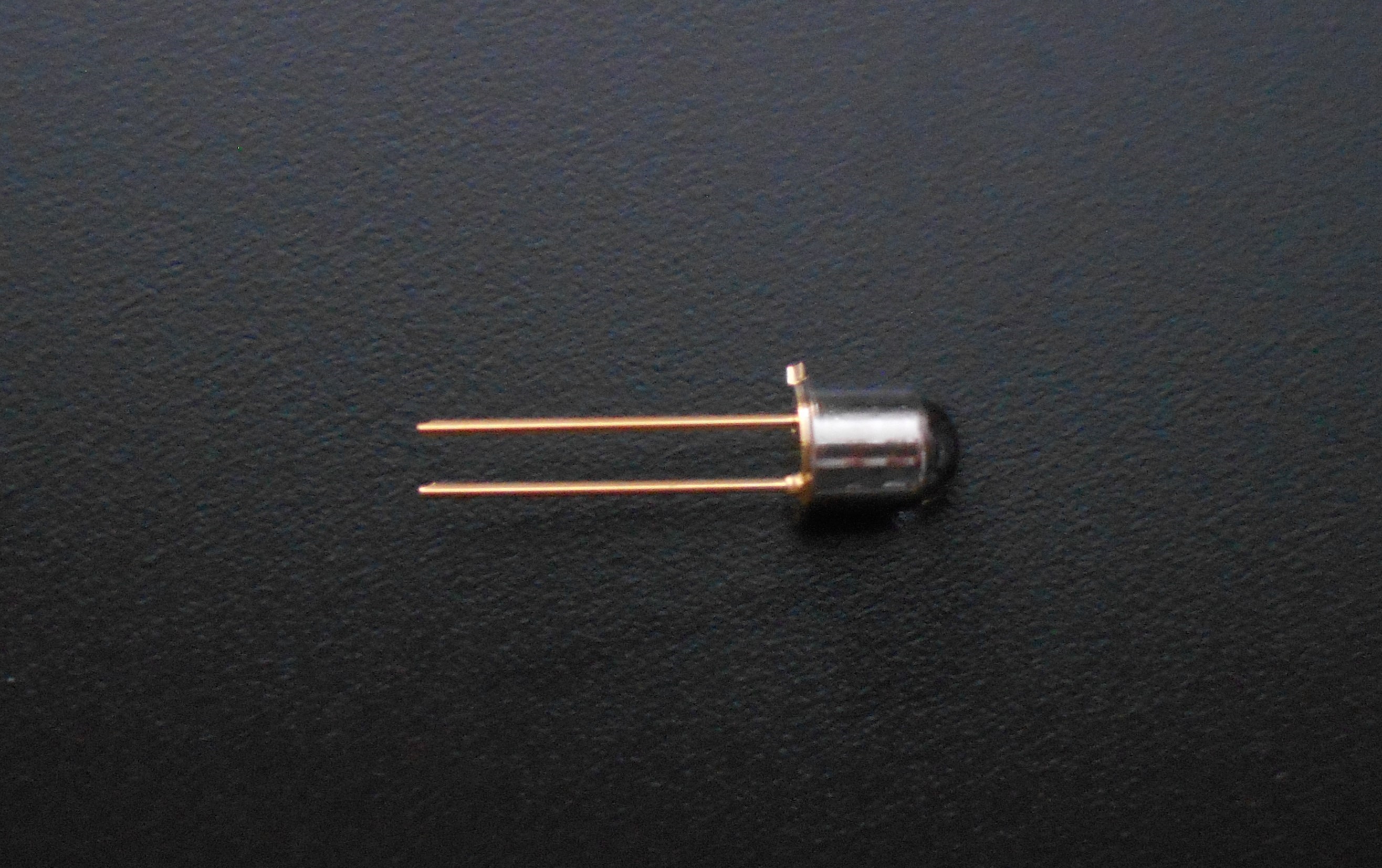

Lamp CAN Ball lens type NSxxxL-5CLA NSxxxL-5CLA 365nm - 375nm High reliability

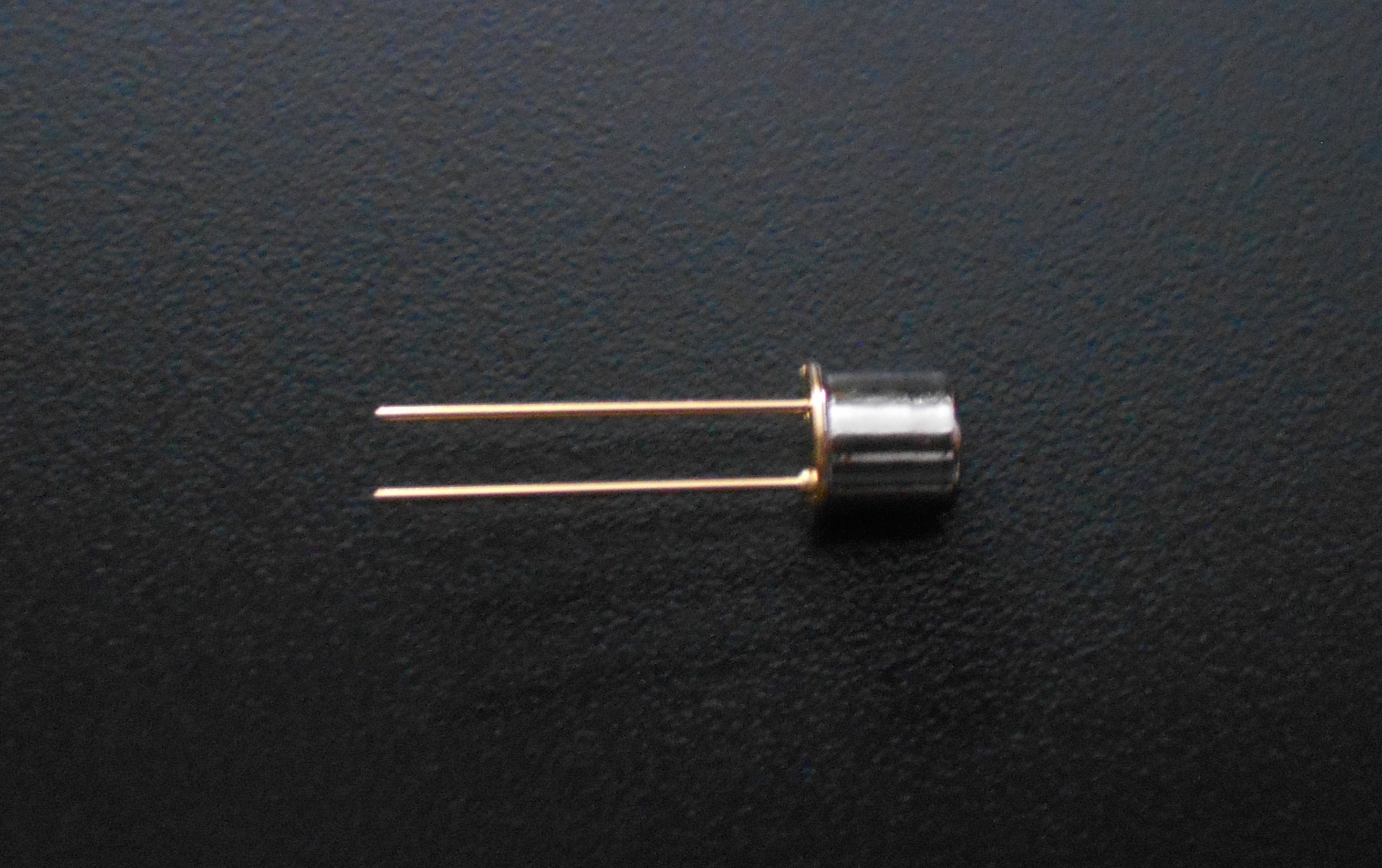

Flat leds type NSxxxL-5CFA NSxxxL-5CFA 365nm - 375nm High reliability
Resin mold Ball lens type NSxxxL-ERLM NSxxxL-ERLM 365nm, 370nm, 375nm, 400nm Added 365nm,370nm version
The world highest power
NSxxxL-5RLO NSxxxL-5RLO 355nm - 375nm 355nm, 360nm are available.Directivity angle is approx.15°.
NSxxxL-5RLM NSxxxL-5RLM 365nm, 375nm Directivity angle is approx.30°.
NSxxxL-3RLQ NSxxxL-3RLQ 355nm - 375nm Directivity angle is approx.15°.
Flat leds type NSxxxL-5RFS NSxxxL-5RFS 365nm - 375nm Directivity angle is approx. 100°.
Power SMD NSxxxL-7SMG NSxxxL-7SMG 365nm, 385nm Ultra high power
4pcs of 1.4mm chip in one PKG
NSxxxL-3SLG NSxxxL-3SLG 365nm, 385nm, 395nm, 405nm Ultra high power
1pcs of 1.4mm chip in one PKG
NSxxxL-3SLR NSxxxL-3SLR 365nm, 385nm, 395nm, 405nm Ultra high power
1pcs of 1.4mm chip in one PKG with hard glass lens
NSxxxL-2SVR NSxxxL-2SVR 365nm, 385nm, 405nm Compact and high power
NSxxxL-3SVR NSxxxL-3SVR 385nm, 395nm, 405nm Compact and high power
NSxxxL-3SVT NSxxxL-3SVT 385nm, 395nm, 405nm High power and Compact and with the condenser lens (45°)
NSxxxL-6SMG NSxxxL-6SMG 365nm, 385nm, 395nm high power
4pcs of 1.1mm chip in one PKG
NSxxxL-6SVG NSxxxL-6SVG 365nm, 375nm, 385nm, 395nm, 405nm high power
1pcs of 1.1mm chip in one PKG
NS400L-4SFH NSxxxL-4SFH 400nm This product is available only in stock because of out of production.
NSxxxM-CPLY NSxxxM-CPLY 365nm - 400nm This product is available only in stock because of out of production.
Module NSxxxM-55LR NSxxxM-55LR 365nm, 385nm High-Density and High-Power module
Deep UV LED
Product Model No. Overview Wavelength Note
SMD NS275L-3DFG NSxxxL-3DFG 275nm 1pcs of large size 275nm chip in one PKG
NS275L-6DMG NSxxxL-6DMG 275nm
<< New Product >>
4pcs of large size 275nm chip in one PKG
NS275L-6DFG NSxxxL-6DFG 275nm 1pcs of large size 275nm chip in one PKG
NSxxxL-6D4G NSxxxL-6D4G 275nm, 310nm 4pcs of DUV chip in one PKG
NSxxxL-6DIG NSxxxL-6DIG 275nm, 310nm 1pcs of DUV chip in one PKG
COB NS310M-88IG NSxxxM-88IG 310nm 64pcs of 310nm chip on Board
Unit NS275U-11YF NSxxxU-11YF 275nm
<< New Product >>
IP grade X8
Unit with COB mounted with special structure of 275nm chip
NS275U-11YC NSxxxU-11YC 275nm
<< New Product >>
Waterproof
Unit with COB mounted with special structure of 275nm chip
Device
Product Description Overview Model No. Wavelength Application
LIMELIGHT 3D LIMELIGHT 3D LIMELIGHT - 375nm Irradiation equipment
